BUSINESS

DMTS Co, Ltd. is providing the Sealing Equipment and the inspection Vision System as TOTAL SOLUTION for technical review,
manufacturing, delivery, local installation, and trial operation

SEALANT EQUIPMENT

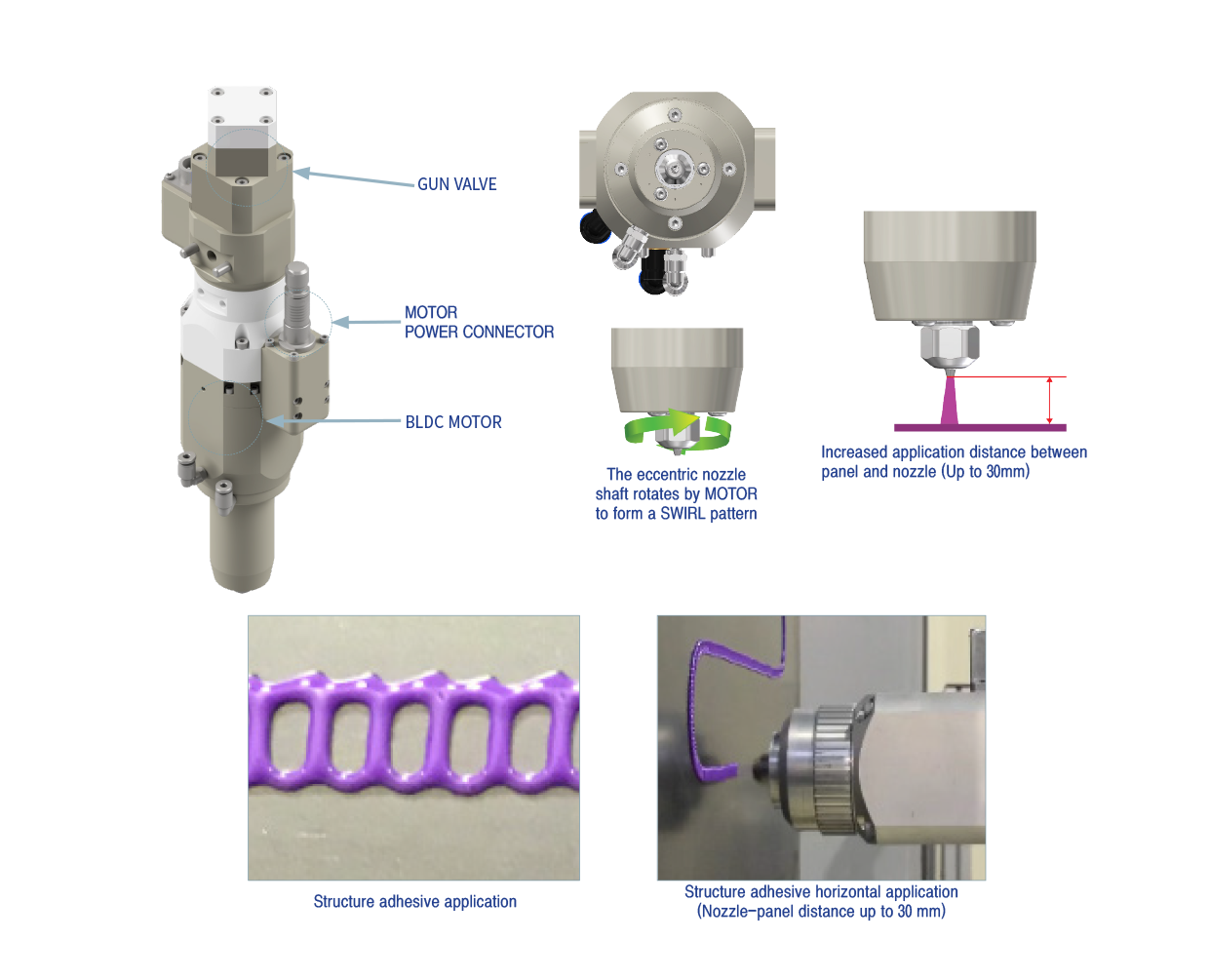

Motor Swirl Sealing System

The M-Swirl System is a Booster Unit integrated with a Booster (refueling device) and an electric Swirl gun, which can be applied by adjusting various narrow and wide patterns.

Features

설비이미지

Effectiveness

  • - Improved adhesion when applying structure adhesive horizontally.
    - Compared to BEAD application, nozzle damage and panel scratches due to panel. separation do not occur, and fine teaching is not required according to the panel height.
    - Application height 10~30mm.
    - Panel and gun angle 90° Vertical and horizontal application possible.
    - Swirl pitch adjustable through RPM control.

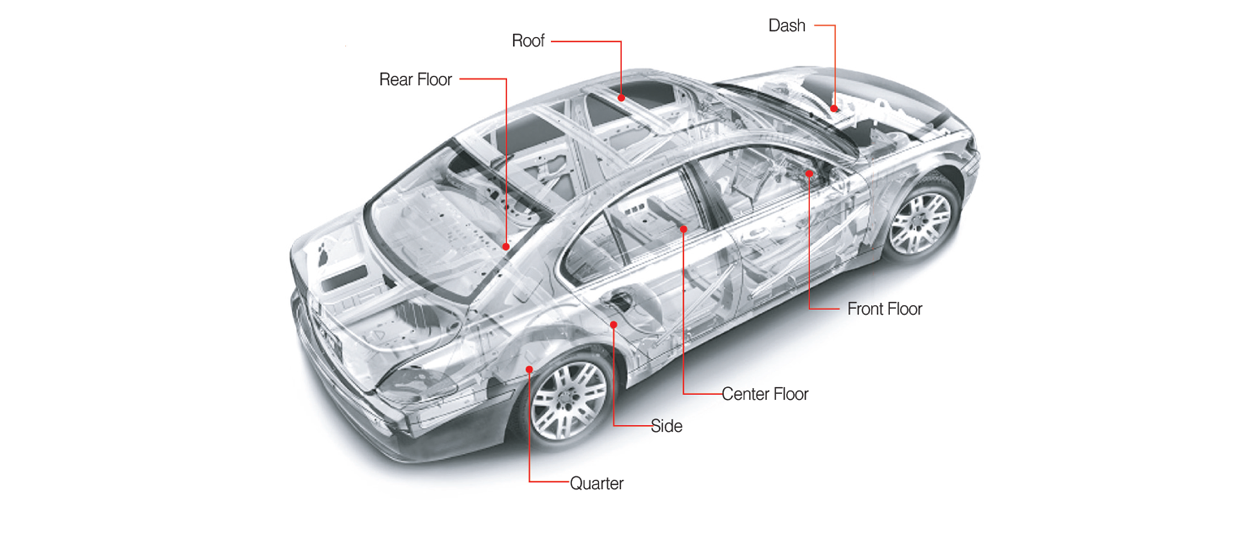

Application part

Application part

Application Tests

Application Tests
Downloading the catalog of DMTS requires email authentication.
