PC PUMP (Progressive Cavity Pump Type)
This advanced pumping system utilizes a rotating rotor to continuously transfer fluid through the cavities formed between the rotor and stator. The internal rotation provides simultaneous discharge and sealing, delivering smooth, pulseless material flow with precise control through a servo-driven motor system. Flow rate is adjustable via motor RPM, making the pump ideal for medium to high-viscosity materials, including fluids with suspended particles. Engineered for consistent performance and reliable material handling, it supports a wide range of industrial dispensing applications.
Lay-out
Equipment Features
| Discharge Accuracy | Motor Rating | Motor RPM | Rotor RPM | Max. Discharge Volume |
|---|---|---|---|---|
| Within 1% | 400W | 3000 | 200 | 3.5cc/sec |
Gun Unit
Gun Unit Spec.
| Motor | Gear Reducer | Maximum Flow Rate | Applicable Fluid | Repeatable Discharge Accuracy |
|---|---|---|---|---|
| 400W/AC Servo Motor | Reduction Ratio 15:1 | 3.5 cc/sec (Structural Adhesive) | Structural Adhesive, Type D | Within ±2% |
| Maximum Rotor Speed | Maximum Inlet Pressure | Maximum Outlet Pressure | Nozzle Diameter | System Weight |
|---|---|---|---|---|
| 200 rpm | 10 bar | 30 bar | Ø1.4(customizable upon request) | 11kg(additional small-capacity version planned) |
PC Pump Overview

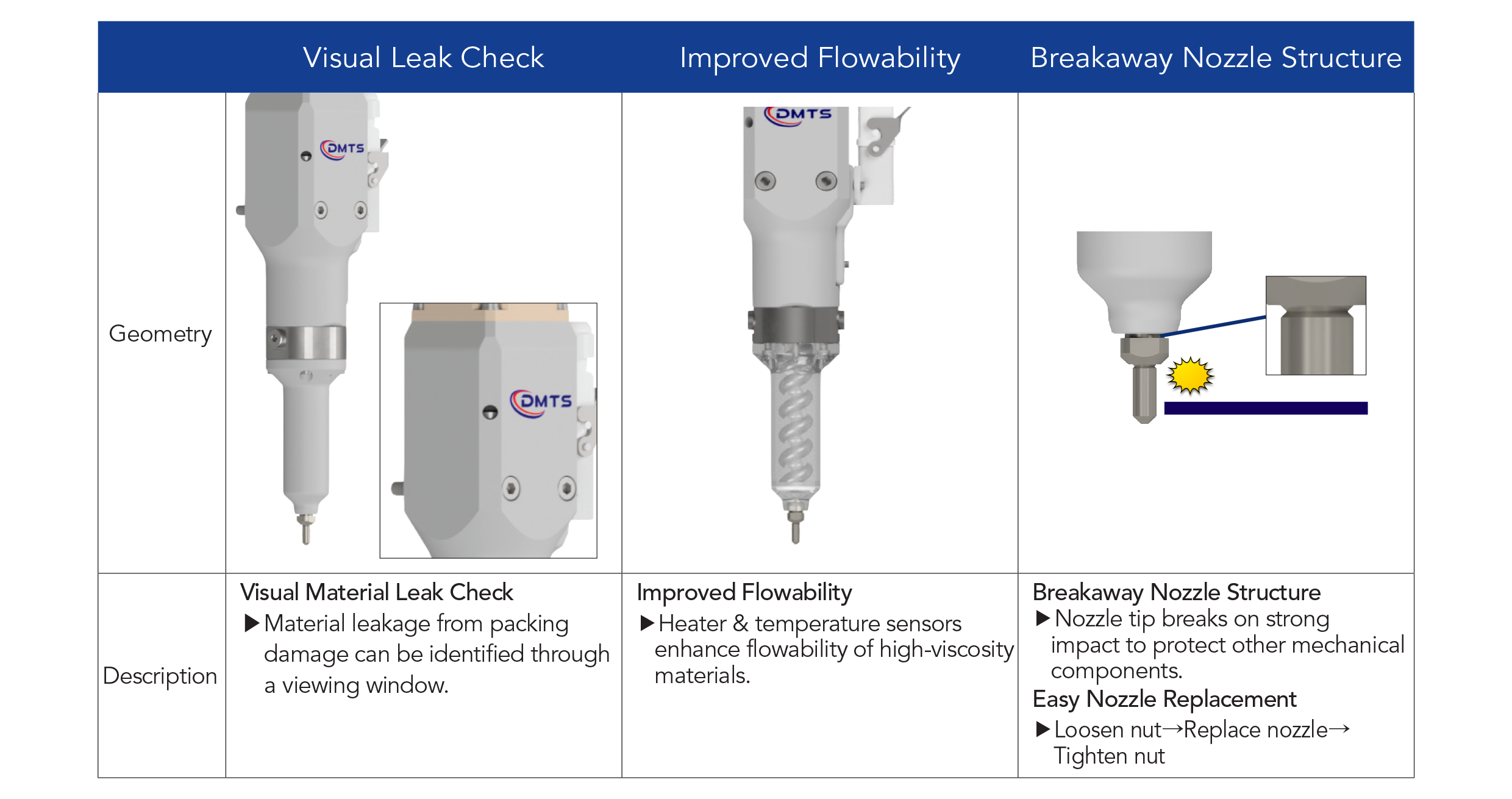

Ease-of-Use Features
Volumetric Discharge Test
