Automated Spatula System
In the final stage of the painting process, manual spatula work has traditionally been used to remove sealing interference areas and improve visual appearance. This automated spatula system was developed to enhance productivity, enabling continuous spatula operation, sealer removal, and discharge through an integrated spatula tool to ensure consistent quality.
System Lay-out
System Advantages
Specifications
| Single suction capacity | Repeat suction capacity | Air consumption | Maximum suction flow | Vacuum level | Suction noise | Applicable fluid | Set weight |
|---|---|---|---|---|---|---|---|
| 3g | 15g | 32L per cycle(4bar) | 1,700L/min(4bar) | -20kPa(4bar) | Below 85dB | PVC BODY Sealer | 6kg |
Operating Principle

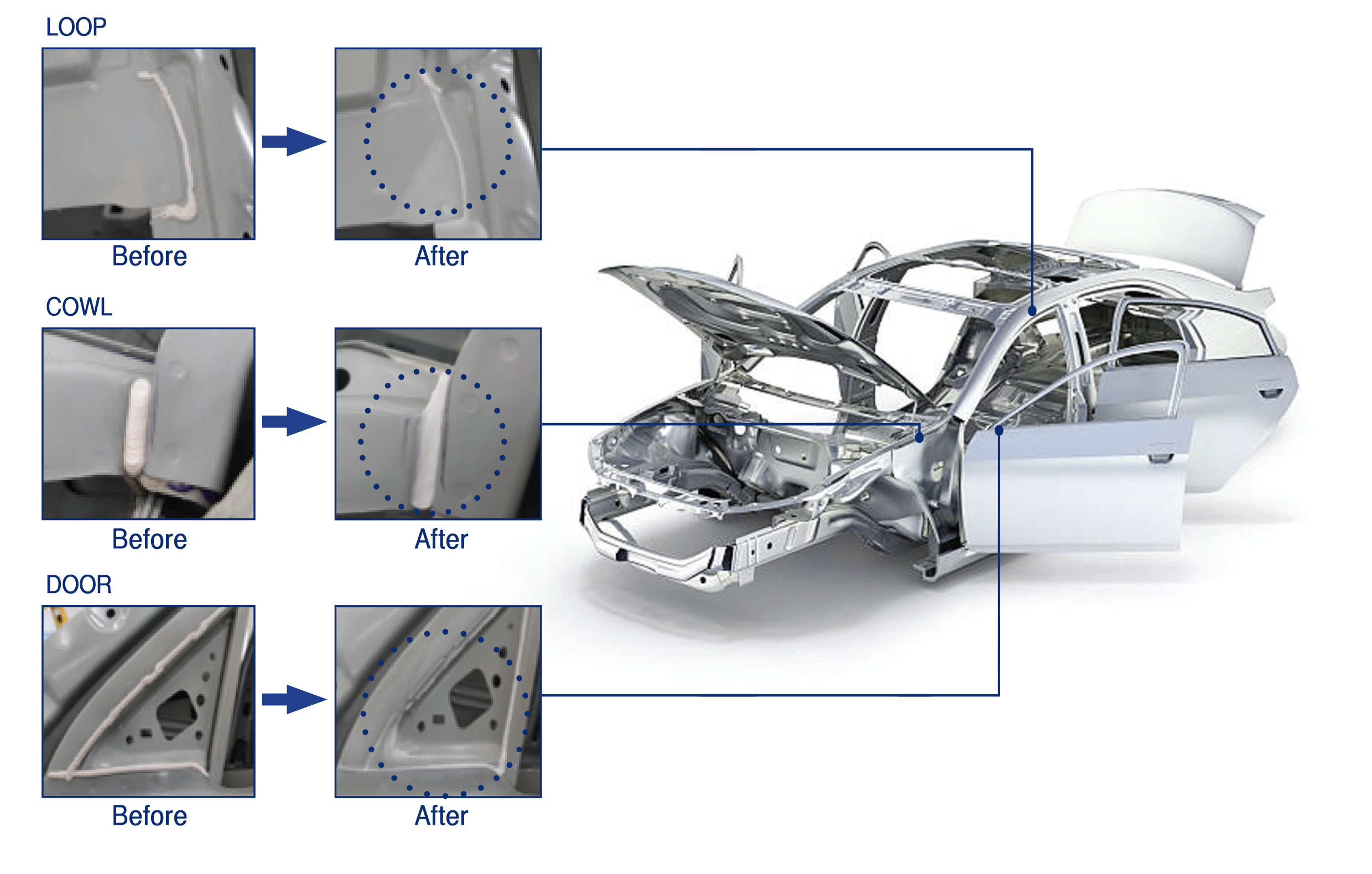

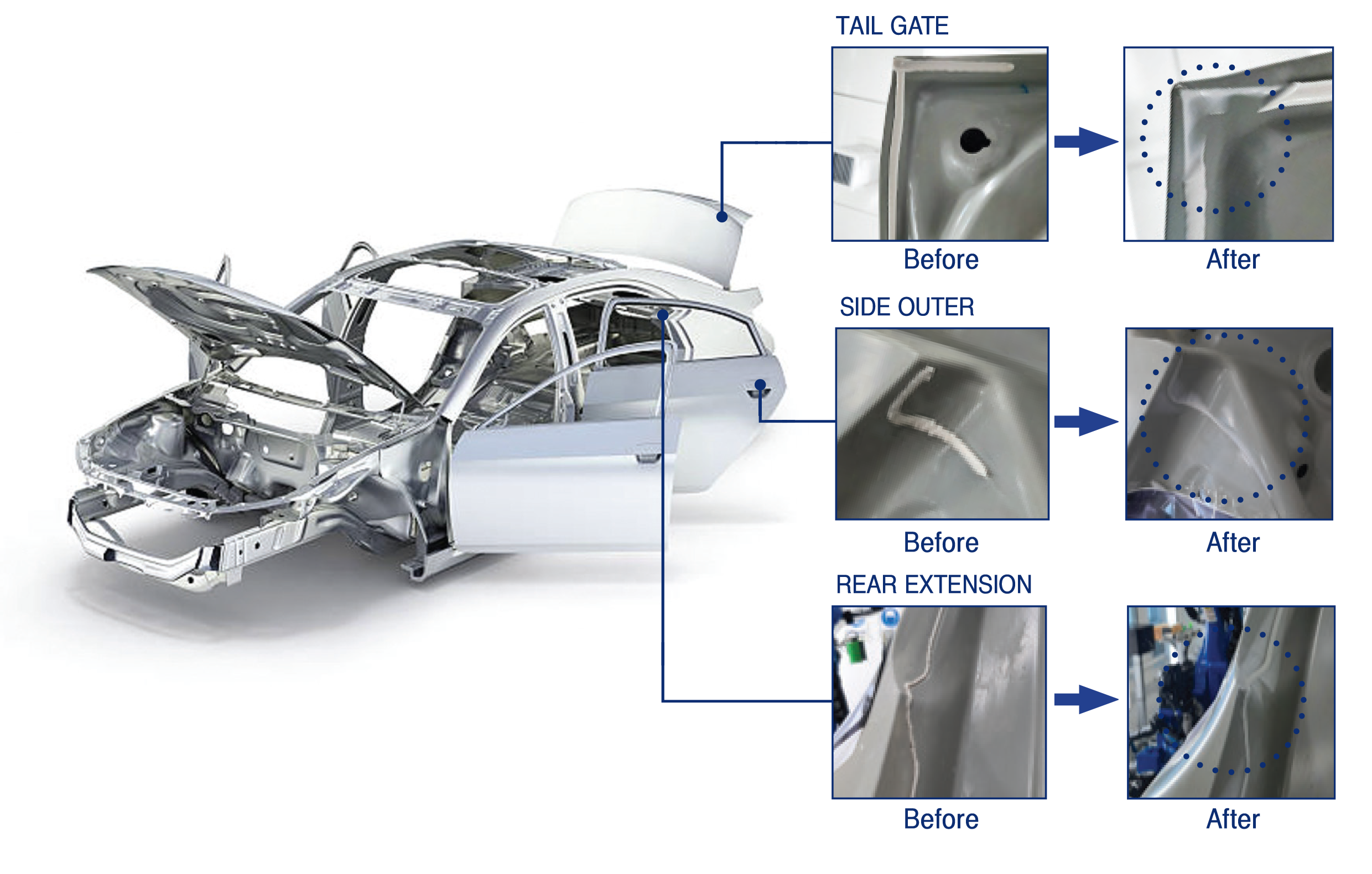

Quality Enhancement Effects
